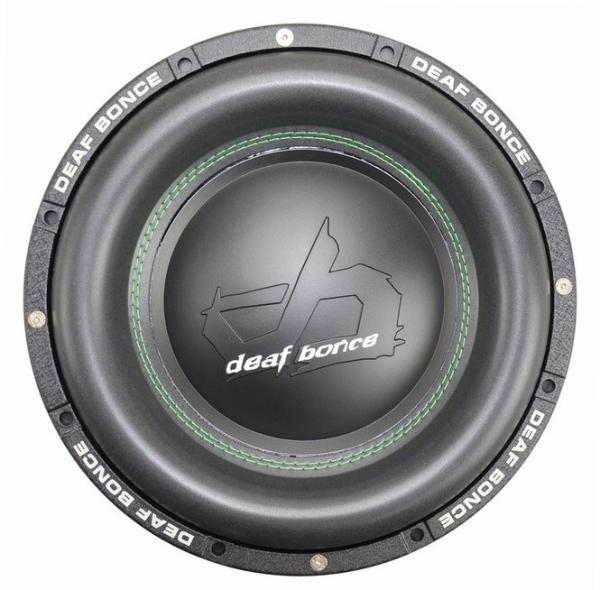

Alphard DEAF BONCE DB-123D1
Alphard DEAF BONCE DB-123D1
Model

Alphard DEAF BONCE DB-123D1

Rating
DIAM
12"
FS(Hz)
32
VAS(l)
38.8
QTS
0.39
PWR(W)
2400
SPL(dB)
86
IMP(Ohm)
1x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
32
Vas(l)
38.8
Qts
0.39
Qms
0
Qes
0
Bl(Tm)
21.7
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
24
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
284
Mounting Depth (mm)
214
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
