Model

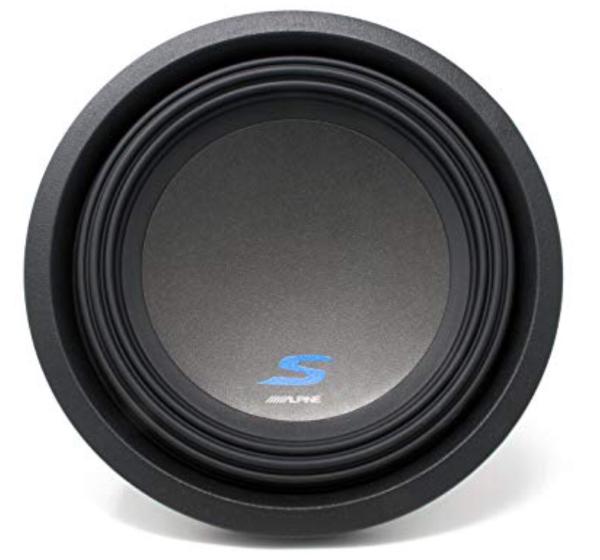

Alpine S-W10D2
Rating
DIAM
10"
FS(Hz)
33
VAS(l)
24.3
QTS
0.44
PWR(W)
1800
SPL(dB)
85
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
24.3
Qts
0.44
Qms
4.4
Qes
0.48
Bl(Tm)
10.7
Mms(gr)
148
Cms(mm/N)
0.157
Rms(kg/s)
6.93
Le(mH)
3.85
Re(Ohm)
1.8
Sd(sq.mm)
33000
Vd(l)
0.494
X-max(mm)
15
X-mech(mm)
64
General Parameters
Diameter (inch)
10
Max Power(W.)
1800
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85
Sensitivity(dB) 2.8-V
90.9
Mounting Information
Speaker Displacement (l)
0.85
Total Diameter (mm)
272
Cutout Diameter (mm)
224
Mounting Depth (mm)
119
Magnet Diameter (mm)
157
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
