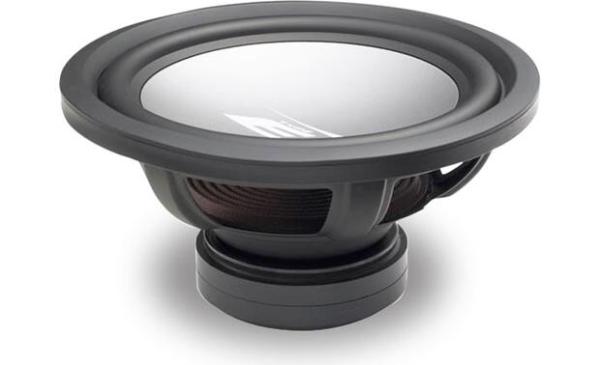

Alpine SWE-1042
Alpine SWE-1042
Model

Alpine SWE-1042

Rating
DIAM
10"
FS(Hz)
33
VAS(l)
33
QTS
0.66
PWR(W)
750
SPL(dB)
84.1
IMP(Ohm)
4x1
avb
NOPROD

Thiele-Small Parameters

Fs(Hz)
33
Vas(l)
33
Qts
0.66
Qms
9.85
Qes
0.707
Bl(Tm)
11
Cms(mm/N)
0.202
Rms(kg/s)
2.423
Le(mH)
0
Mms(gr)
115
Vd(l)
0.398
Sd(sq.mm)
33979
X-max(mm)
12
X-mech(mm)
0
Re(Ohm)
3.6

General Parameters

Diameter (inch)
10
Max Power(W.)
750
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.23
Total Diameter (mm)
0
Cutout Diameter (mm)
227
Mounting Depth (mm)
145
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
