Model

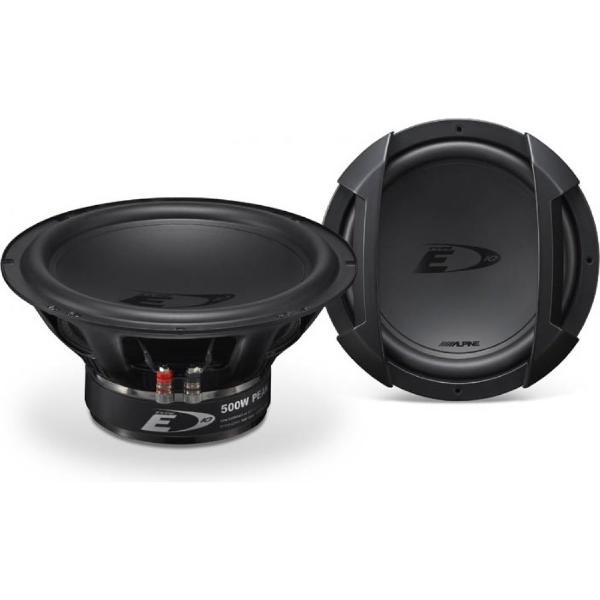

Alpine SWE-1044E
Rating
DIAM
10"
FS(Hz)
34
VAS(l)
49
QTS
0.5
PWR(W)
500
SPL(dB)
86.9
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
49
Qts
0.497
Qms
2.9
Qes
0.6
Bl(Tm)
1.3
Mms(gr)
146
Cms(mm/N)
0.15
Rms(kg/s)
10.762
Le(mH)
0.6
Re(Ohm)
3.3
Sd(sq.mm)
48000
Vd(l)
0.408
X-max(mm)
9
X-mech(mm)
10
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
90.7
Mounting Information
Speaker Displacement (l)
2
Total Diameter (mm)
267
Cutout Diameter (mm)
230
Mounting Depth (mm)
115
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
