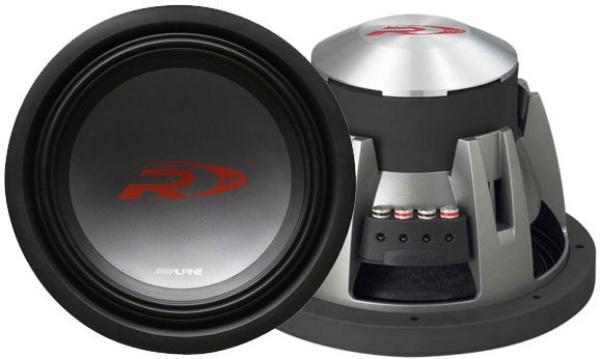

Alpine SWR-1022D
Alpine SWR-1022D
Model

Alpine SWR-1022D

Rating
DIAM
10"
FS(Hz)
31
VAS(l)
20
QTS
0.5
PWR(W)
1500
SPL(dB)
83
IMP(Ohm)
2x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
31
Vas(l)
20
Qts
0.5
Qms
8.67
Qes
0.53
Bl(Tm)
0
Cms(mm/N)
0.128
Rms(kg/s)
4.626
Le(mH)
0
Mms(gr)
206
Vd(l)
0.601
Sd(sq.mm)
33200
X-max(mm)
18
X-mech(mm)
0
Re(Ohm)
1.9

General Parameters

Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.4
Total Diameter (mm)
0
Cutout Diameter (mm)
231
Mounting Depth (mm)
172
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
