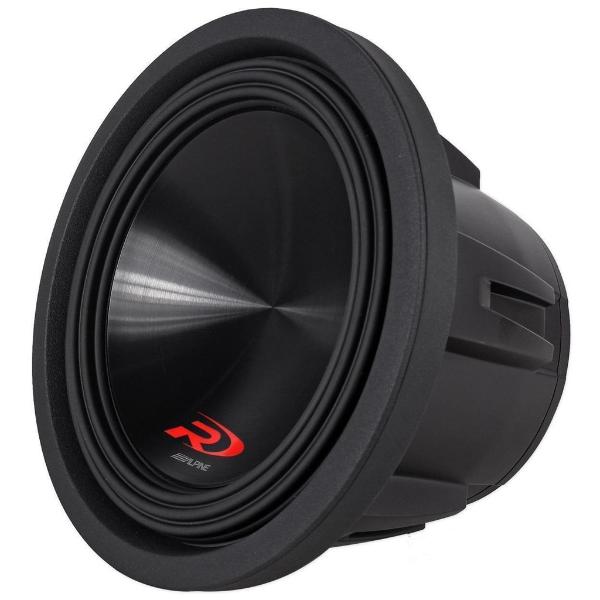

Alpine SWR-10D4
Alpine SWR-10D4
Model

Alpine SWR-10D4

Rating
DIAM
10"
FS(Hz)
32
VAS(l)
18
QTS
0.55
PWR(W)
3000
SPL(dB)
82
IMP(Ohm)
4x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
32
Vas(l)
18
Qts
0.55
Qms
7
Qes
0.6
Bl(Tm)
16.6
Cms(mm/N)
0.114
Rms(kg/s)
6.23
Le(mH)
0
Mms(gr)
217
Vd(l)
0.666
Sd(sq.mm)
33300
X-max(mm)
20
X-mech(mm)
0
Re(Ohm)
3.8

General Parameters

Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.3
Total Diameter (mm)
0
Cutout Diameter (mm)
231
Mounting Depth (mm)
149
Magnet Diameter (mm)
175

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
