Model

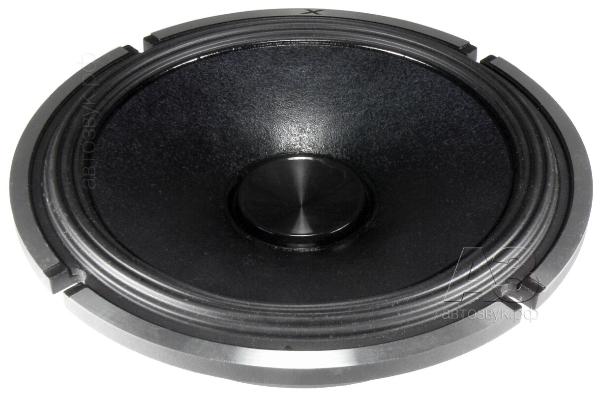

Alpine X-S65C
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
6"
FS(Hz)
58.2
VAS(l)
16.8
QTS
0.62
PWR(W)
360
SPL(dB)
89
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
58.2
Vas(l)
16.8
Qts
0.62
Qms
5.03
Qes
0.71
Bl(Tm)
4.7
Mms(gr)
13
Cms(mm/N)
0.589
Rms(kg/s)
0.92
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
14181
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
360
RMS Power(W.)
120
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.45
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
92.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
138
Mounting Depth (mm)
59
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
