Model

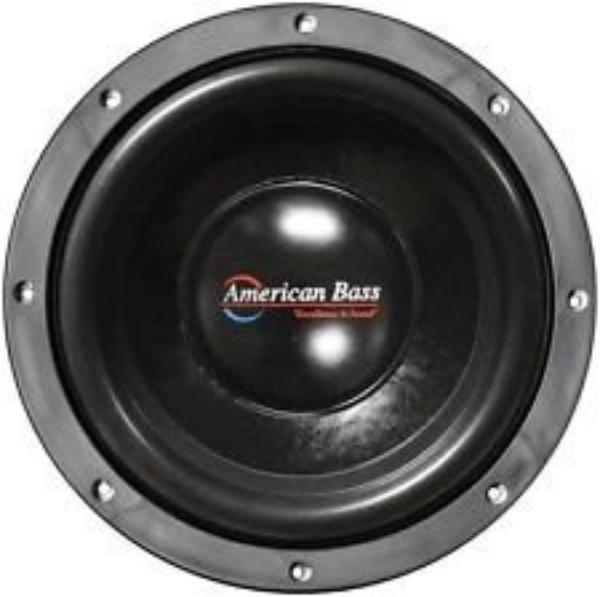

American Bass DX 10
Rating
DIAM
10"
FS(Hz)
36.1
VAS(l)
20.7
QTS
0.49
PWR(W)
600
SPL(dB)
84.4
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
36.1
Vas(l)
20.7
Qts
0.486
Qms
5
Qes
0.54
Bl(Tm)
13.7
Mms(gr)
131
Cms(mm/N)
0.148
Rms(kg/s)
5.943
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
29870
Vd(l)
0.358
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
600
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.5
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
140
Magnet Diameter (mm)
152
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
