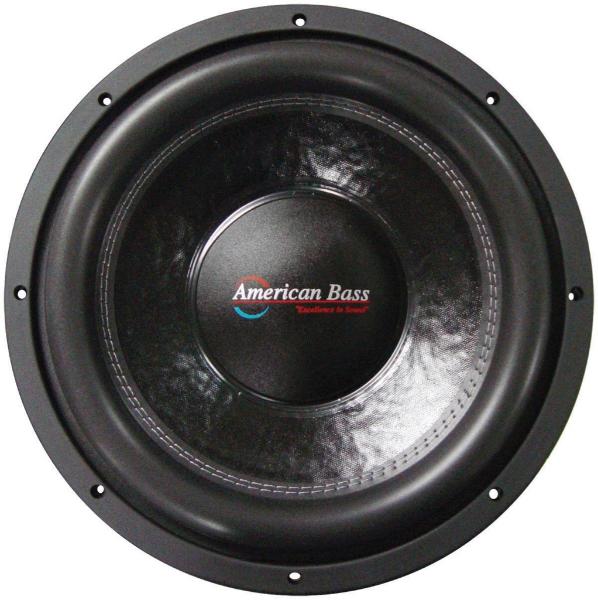

American Bass DX 12
American Bass DX 12
Model

American Bass DX 12

Rating
DIAM
12"
FS(Hz)
35.6
VAS(l)
41.5
QTS
0.6
PWR(W)
600
SPL(dB)
86.2
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
35.6
Vas(l)
41.5
Qts
0.6
Qms
5.25
Qes
0.677
Bl(Tm)
13.3
Cms(mm/N)
0.129
Rms(kg/s)
6.604
Le(mH)
0
Mms(gr)
155
Vd(l)
0.566
Sd(sq.mm)
47140
X-max(mm)
12
X-mech(mm)
0
Re(Ohm)
3.4

General Parameters

Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
89.9

Mounting Information

Speaker Displacement (l)
3.6
Total Diameter (mm)
0
Cutout Diameter (mm)
276
Mounting Depth (mm)
150
Magnet Diameter (mm)
152

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
