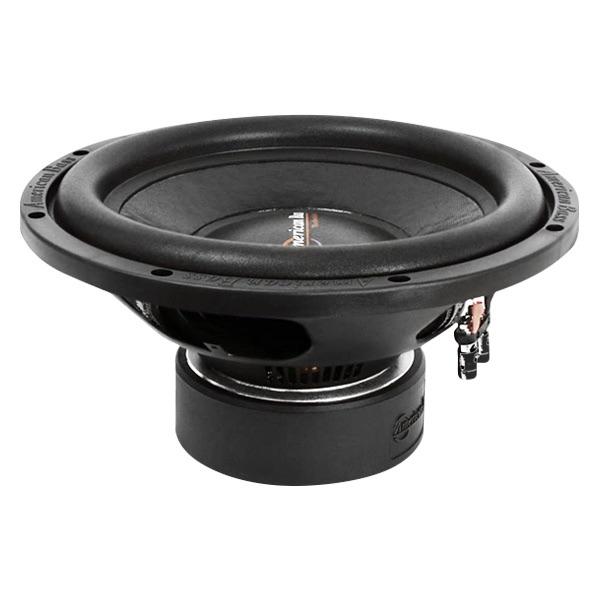

American Bass DX 15
American Bass DX 15
Model

American Bass DX 15

Rating
DIAM
15"
FS(Hz)
30.4
VAS(l)
89.6
QTS
0.56
PWR(W)
1000
SPL(dB)
90
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
30.4
Vas(l)
89.6
Qts
0.56
Qms
4.76
Qes
0.634
Bl(Tm)
16.3
Cms(mm/N)
0.105
Rms(kg/s)
10.433
Le(mH)
0
Mms(gr)
260
Vd(l)
1.15
Sd(sq.mm)
76450
X-max(mm)
15
X-mech(mm)
0
Re(Ohm)
3.5

General Parameters

Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
6.8
Total Diameter (mm)
0
Cutout Diameter (mm)
354
Mounting Depth (mm)
228
Magnet Diameter (mm)
162

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
