Model

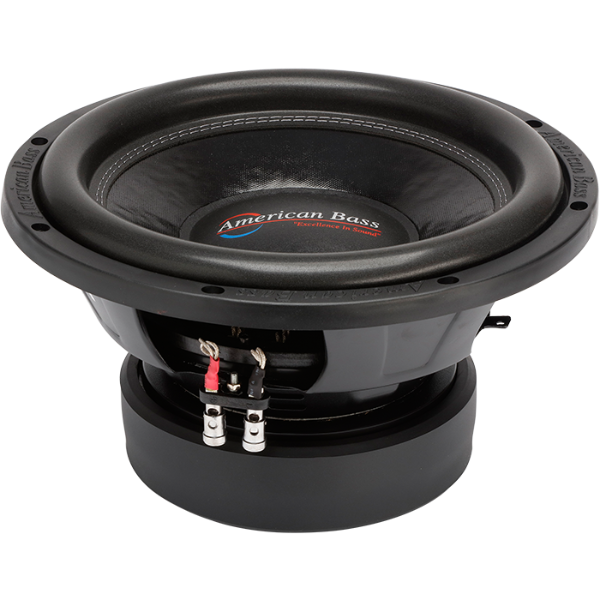

American Bass E1222(ELITE)
Rating
DIAM
12"
FS(Hz)
31.3
VAS(l)
35.8
QTS
0.5
PWR(W)
2400
SPL(dB)
84.9
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
31.3
Vas(l)
35.8
Qts
0.496
Qms
5.9
Qes
0.542
Bl(Tm)
10.4
Mms(gr)
280
Cms(mm/N)
0.092
Rms(kg/s)
9.33
Le(mH)
1.4
Re(Ohm)
1.1
Sd(sq.mm)
52381
Vd(l)
0.733
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
93.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
318
Cutout Diameter (mm)
278
Mounting Depth (mm)
172
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
