Model

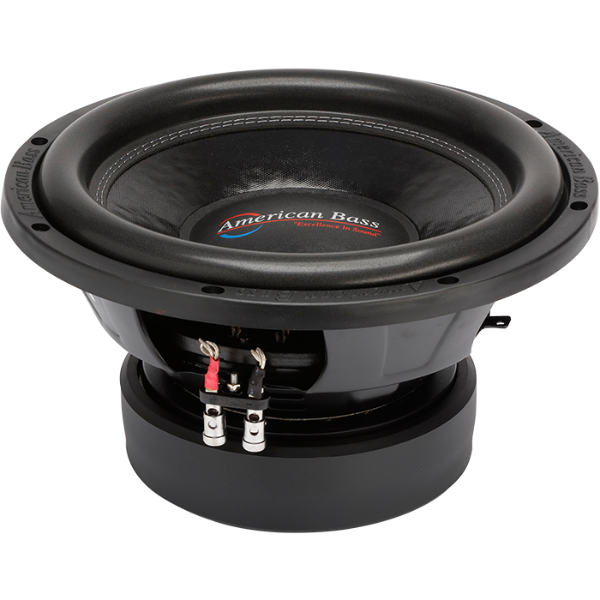

American Bass E1244(ELITE)
Rating
DIAM
12"
FS(Hz)
33
VAS(l)
34
QTS
0.52
PWR(W)
2400
SPL(dB)
85.1
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
34
Qts
0.517
Qms
4.9
Qes
0.578
Bl(Tm)
12.4
Mms(gr)
252
Cms(mm/N)
0.092
Rms(kg/s)
10.62
Le(mH)
1.8
Re(Ohm)
1.7
Sd(sq.mm)
52381
Vd(l)
0.733
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85.1
Sensitivity(dB) 2.8-V
91.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
318
Cutout Diameter (mm)
278
Mounting Depth (mm)
172
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
