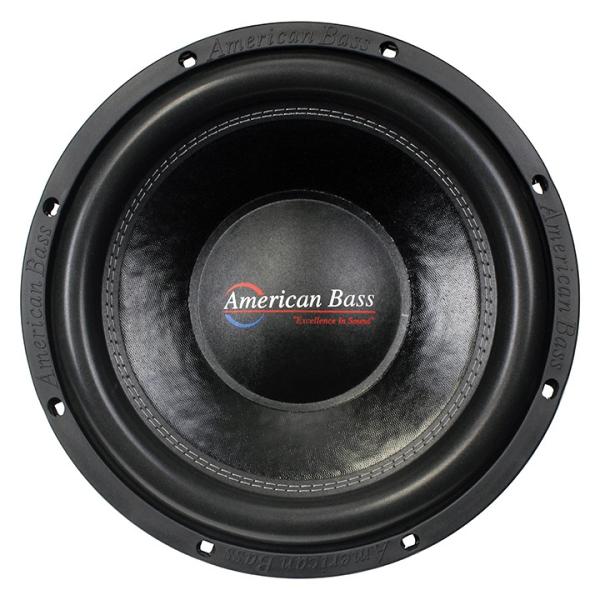

American Bass E1522(ELITE)
American Bass E1522(ELITE)
Model

American Bass E1522(ELITE)

Rating
DIAM
15"
FS(Hz)
31.5
VAS(l)
64
QTS
0.63
PWR(W)
2400
SPL(dB)
86.4
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
31.5
Vas(l)
64
Qts
0.629
Qms
6.2
Qes
0.7
Bl(Tm)
10
Cms(mm/N)
0.073
Rms(kg/s)
11.72
Le(mH)
1.4
Mms(gr)
367
Vd(l)
1.128
Sd(sq.mm)
80595
X-max(mm)
14
X-mech(mm)
31
Re(Ohm)
1.7

General Parameters

Diameter (inch)
15
Max Power(W.)
2400
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
93.1

Mounting Information

Speaker Displacement (l)
6
Total Diameter (mm)
395
Cutout Diameter (mm)
343
Mounting Depth (mm)
196
Magnet Diameter (mm)
196

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
