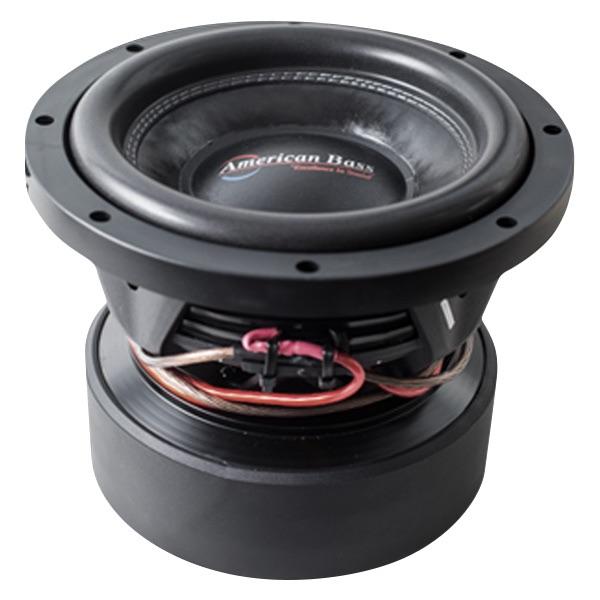

American Bass HD 10 D1
American Bass HD 10 D1
Model

American Bass HD 10 D1

Rating
DIAM
10"
FS(Hz)
41
VAS(l)
9.2
QTS
0.35
PWR(W)
3000
SPL(dB)
84.1
IMP(Ohm)
1x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
41
Vas(l)
9.2
Qts
0.355
Qms
6.999
Qes
0.374
Bl(Tm)
24.1
Cms(mm/N)
0.062
Rms(kg/s)
8.944
Le(mH)
0
Mms(gr)
243
Vd(l)
0.97
Sd(sq.mm)
32346
X-max(mm)
30
X-mech(mm)
0
Re(Ohm)
3.5

General Parameters

Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
