Model

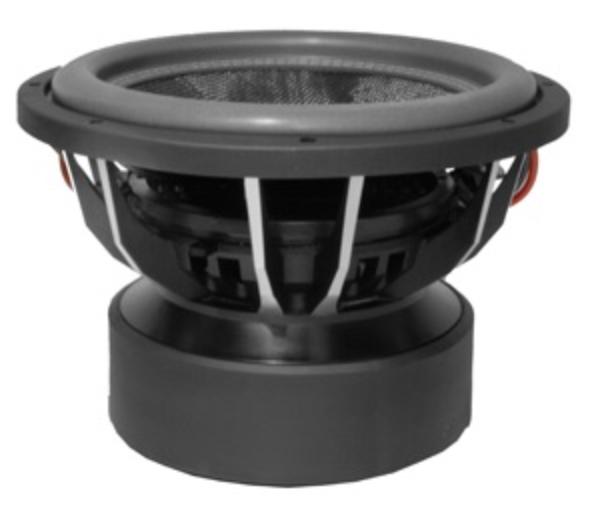

American Bass HD 12 D2
Rating
DIAM
12"
FS(Hz)
33.3
VAS(l)
28.5
QTS
0.35
PWR(W)
3000
SPL(dB)
86.2
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.3
Vas(l)
28.5
Qts
0.352
Qms
3.749
Qes
0.388
Bl(Tm)
13
Mms(gr)
329
Cms(mm/N)
0.069
Rms(kg/s)
18.361
Le(mH)
0
Re(Ohm)
0.9
Sd(sq.mm)
53966
Vd(l)
1.619
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
95.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
288
Mounting Depth (mm)
206
Magnet Diameter (mm)
226
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
