Model

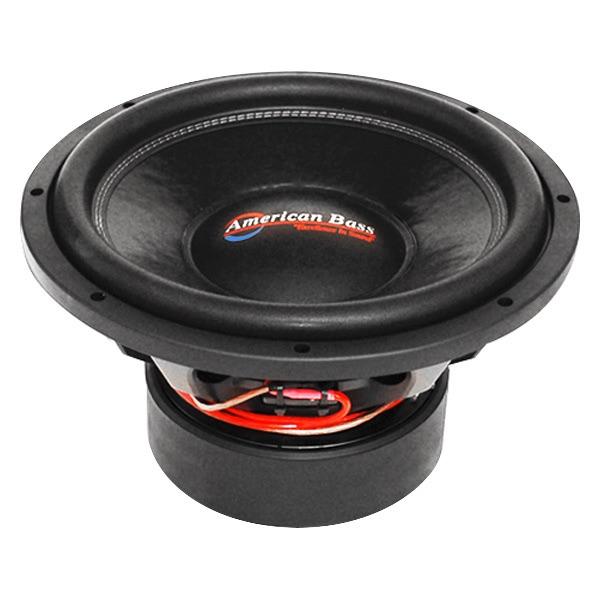

American Bass HD 15 D2
Rating
DIAM
15"
FS(Hz)
31.7
VAS(l)
62.3
QTS
0.38
PWR(W)
3000
SPL(dB)
88.5
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.7
Vas(l)
62.3
Qts
0.382
Qms
3.716
Qes
0.426
Bl(Tm)
14
Mms(gr)
457
Cms(mm/N)
0.055
Rms(kg/s)
24.495
Le(mH)
0
Re(Ohm)
0.9
Sd(sq.mm)
89369
Vd(l)
2.681
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
353
Mounting Depth (mm)
228
Magnet Diameter (mm)
226
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
