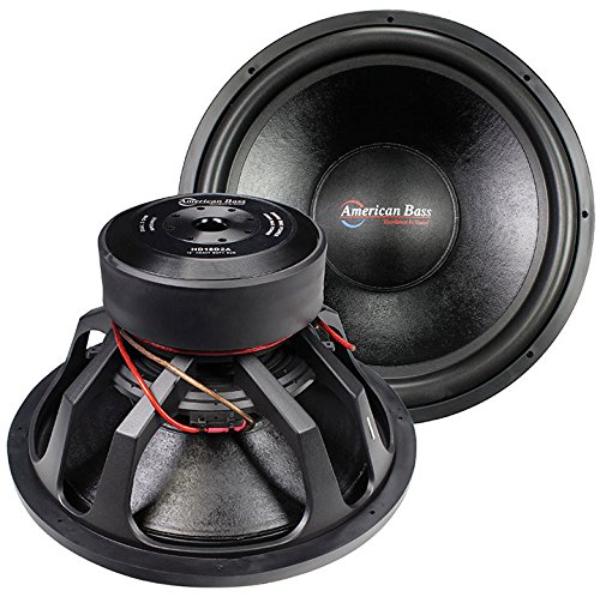

American Bass HD 18 D2A
American Bass HD 18 D2A
Model

American Bass HD 18 D2A

Rating
DIAM
18"
FS(Hz)
35.7
VAS(l)
145.8
QTS
0.47
PWR(W)
4000
SPL(dB)
92.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
35.7
Vas(l)
145.8
Qts
0.468
Qms
3.799
Qes
0.534
Bl(Tm)
9.6
Mms(gr)
276
Cms(mm/N)
0.072
Rms(kg/s)
16.314
Le(mH)
0
Re(Ohm)
0.8
Sd(sq.mm)
119500
Vd(l)
2.091
X-max(mm)
18
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
257
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
