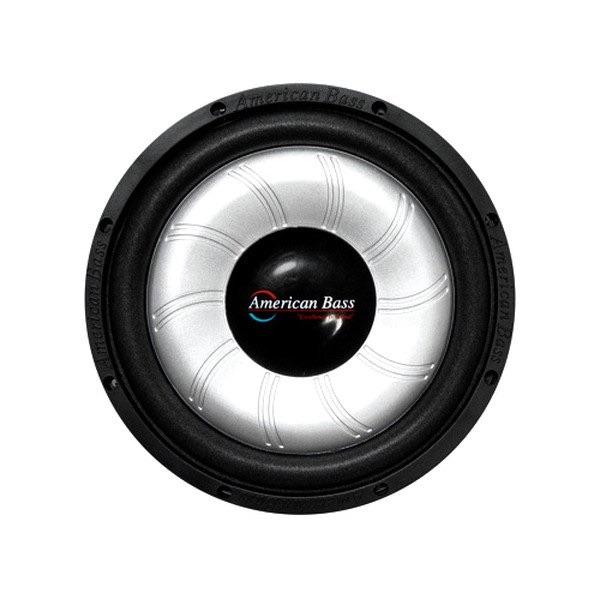

American Bass SL 104
American Bass SL 104
Model

American Bass SL 104

Rating
DIAM
10"
FS(Hz)
33.6
VAS(l)
26.8
QTS
0.52
PWR(W)
500
SPL(dB)
84.3
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33.6
Vas(l)
26.8
Qts
0.52
Qms
4.931
Qes
0.58
Bl(Tm)
11.5
Mms(gr)
99
Cms(mm/N)
0.23
Rms(kg/s)
4.243
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
31400
Vd(l)
0.27
X-max(mm)
9
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
