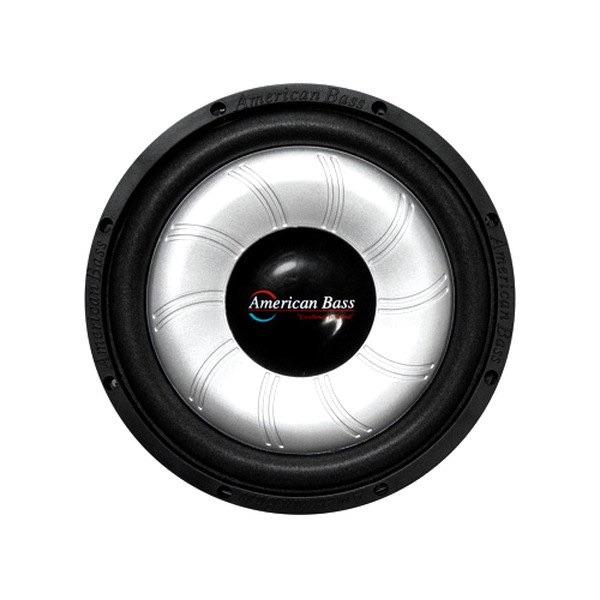

American Bass SL 124
American Bass SL 124
Model

American Bass SL 124

Rating
DIAM
12"
FS(Hz)
31.5
VAS(l)
85.7
QTS
0.54
PWR(W)
500
SPL(dB)
88.3
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
31.5
Vas(l)
85.7
Qts
0.543
Qms
5.295
Qes
0.61
Bl(Tm)
10.7
Cms(mm/N)
0.251
Rms(kg/s)
3.801
Le(mH)
0
Mms(gr)
102
Vd(l)
0.42
Sd(sq.mm)
49100
X-max(mm)
9
X-mech(mm)
0
Re(Ohm)
3.4

General Parameters

Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
