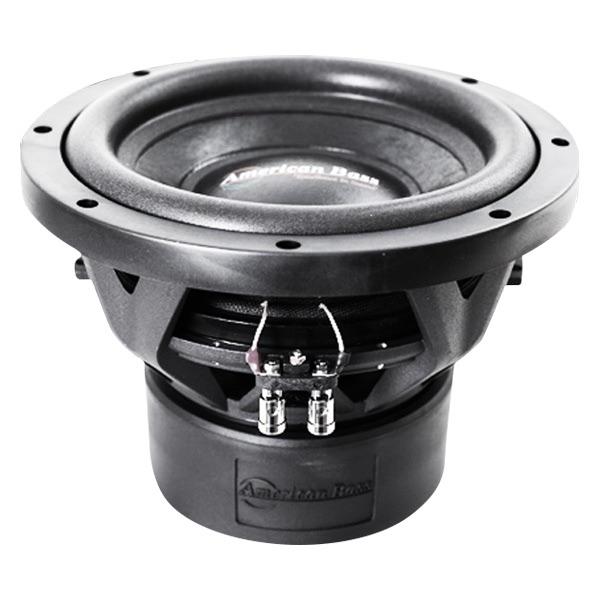

American Bass TNT 1044
American Bass TNT 1044
Model

American Bass TNT 1044

Rating
DIAM
10"
FS(Hz)
33.7
VAS(l)
15.1
QTS
0.49
PWR(W)
1200
SPL(dB)
82.1
IMP(Ohm)
4x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
33.7
Vas(l)
15.1
Qts
0.491
Qms
5.2
Qes
0.54
Bl(Tm)
11.9
Cms(mm/N)
0.105
Rms(kg/s)
8.673
Le(mH)
0
Mms(gr)
213
Vd(l)
0.5
Sd(sq.mm)
33010
X-max(mm)
15
X-mech(mm)
0
Re(Ohm)
1.7

General Parameters

Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
160
Magnet Diameter (mm)
162

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
