Model

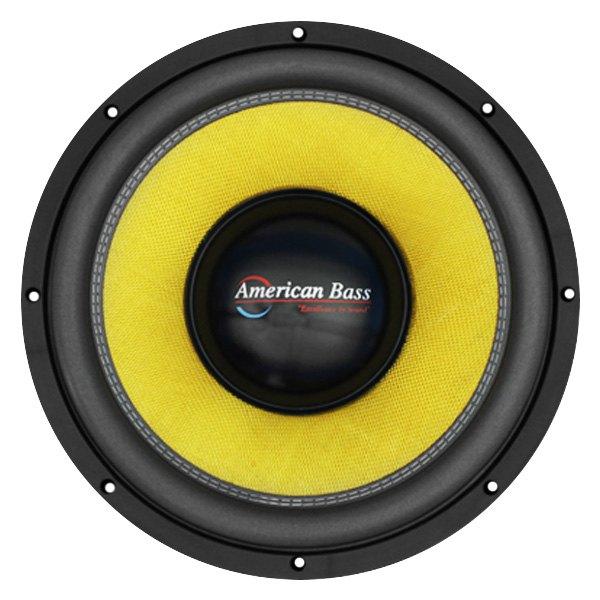

American Bass VFL 1511
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
15"
FS(Hz)
38
VAS(l)
31.1
QTS
0.34
PWR(W)
5000
SPL(dB)
88.4
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38
Vas(l)
31.1
Qts
0.345
Qms
5.204
Qes
0.378
Bl(Tm)
20.8
Mms(gr)
358
Cms(mm/N)
0.049
Rms(kg/s)
16.49
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
66267
Vd(l)
1.988
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
206
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
