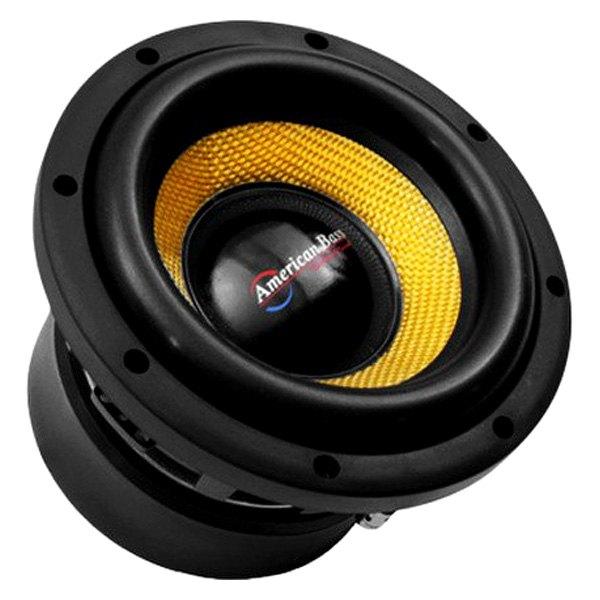

American Bass VFL 8D
American Bass VFL 8D
Model

American Bass VFL 8D

Rating
DIAM
8"
FS(Hz)
42.1
VAS(l)
5.7
QTS
0.48
PWR(W)
800
SPL(dB)
80.8
IMP(Ohm)
2x2
avb
NOPROD

Thiele-Small Parameters

Fs(Hz)
42.1
Vas(l)
5.7
Qts
0.477
Qms
3.739
Qes
0.547
Bl(Tm)
10.6
Cms(mm/N)
0.109
Rms(kg/s)
9.273
Le(mH)
1.322
Mms(gr)
131
Vd(l)
0.25
Sd(sq.mm)
19236
X-max(mm)
13
X-mech(mm)
28
Re(Ohm)
1.8

General Parameters

Diameter (inch)
8
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.08
Sensitivity(dB) 1-W
80.8
Sensitivity(dB) 2.8-V
87.3

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
