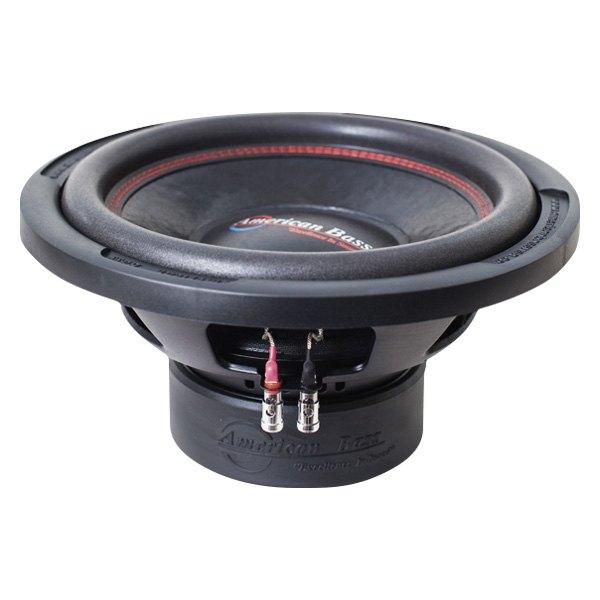

American Bass XD 1044
American Bass XD 1044
Model

American Bass XD 1044

Rating
DIAM
10"
FS(Hz)
36
VAS(l)
21
QTS
0.47
PWR(W)
900
SPL(dB)
84.4
IMP(Ohm)
4x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
36
Vas(l)
21
Qts
0.468
Qms
3.646
Qes
0.54
Bl(Tm)
10.1
Cms(mm/N)
0.16
Rms(kg/s)
7.569
Le(mH)
0
Mms(gr)
122
Vd(l)
0.35
Sd(sq.mm)
31416
X-max(mm)
11
X-mech(mm)
0
Re(Ohm)
2

General Parameters

Diameter (inch)
10
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
231
Mounting Depth (mm)
153
Magnet Diameter (mm)
162

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
