Model

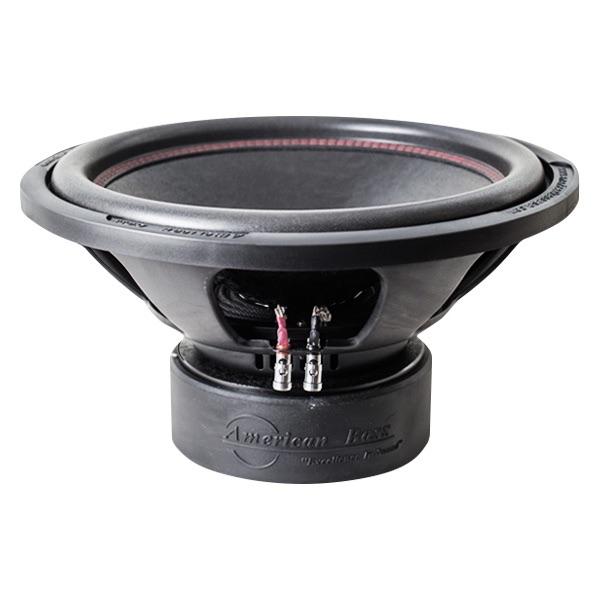

American Bass XD 1244
Rating
DIAM
12"
FS(Hz)
35
VAS(l)
43
QTS
0.48
PWR(W)
1000
SPL(dB)
87.1
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
35
Vas(l)
43
Qts
0.484
Qms
3.86
Qes
0.55
Bl(Tm)
10.2
Mms(gr)
159
Cms(mm/N)
0.13
Rms(kg/s)
9.059
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
51071
Vd(l)
0.66
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
272
Mounting Depth (mm)
165
Magnet Diameter (mm)
162
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
