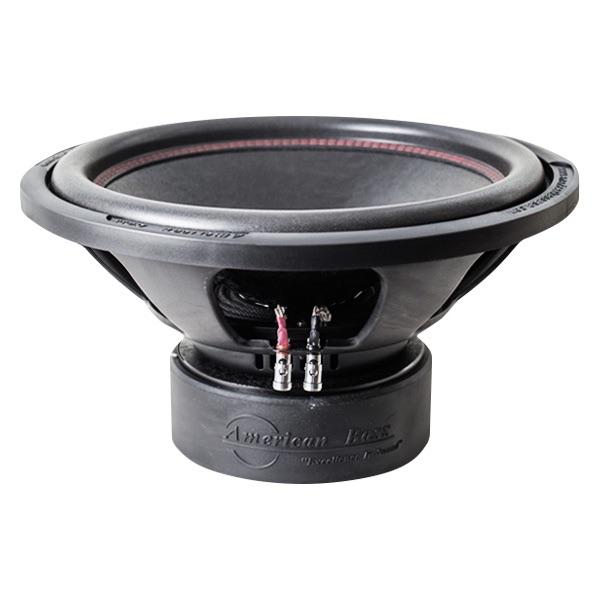

American Bass XD 1544
American Bass XD 1544
Model

American Bass XD 1544

Rating
DIAM
15"
FS(Hz)
31
VAS(l)
82
QTS
0.57
PWR(W)
1400
SPL(dB)
87.5
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
31
Vas(l)
82
Qts
0.575
Qms
4.08
Qes
0.67
Bl(Tm)
11
Mms(gr)
250
Cms(mm/N)
0.105
Rms(kg/s)
11.935
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
80425
Vd(l)
1.13
X-max(mm)
14
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
351
Mounting Depth (mm)
196
Magnet Diameter (mm)
176

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
