Model

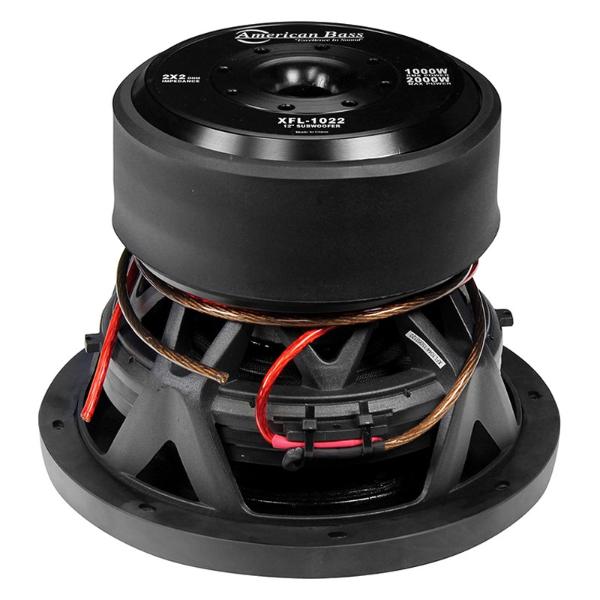

American Bass XFL 1022
Rating
DIAM
10"
FS(Hz)
31.6
VAS(l)
14.6
QTS
0.43
PWR(W)
2000
SPL(dB)
81.6
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.6
Vas(l)
14.6
Qts
0.429
Qms
3.6
Qes
0.49
Bl(Tm)
9.9
Mms(gr)
269
Cms(mm/N)
0.094
Rms(kg/s)
14.836
Le(mH)
0
Re(Ohm)
0.9
Sd(sq.mm)
33010
Vd(l)
0.63
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
181
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
