Model

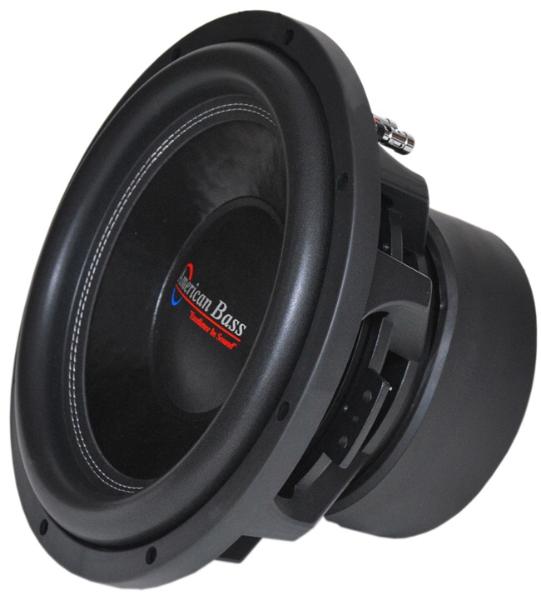

American Bass XFL 1222
Rating
DIAM
12"
FS(Hz)
31.9
VAS(l)
28.8
QTS
0.41
PWR(W)
2000
SPL(dB)
84.8
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.9
Vas(l)
28.8
Qts
0.415
Qms
3.826
Qes
0.47
Bl(Tm)
11.1
Mms(gr)
321
Cms(mm/N)
0.078
Rms(kg/s)
16.816
Le(mH)
0
Re(Ohm)
0.9
Sd(sq.mm)
51070
Vd(l)
0.97
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
288
Mounting Depth (mm)
193
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
