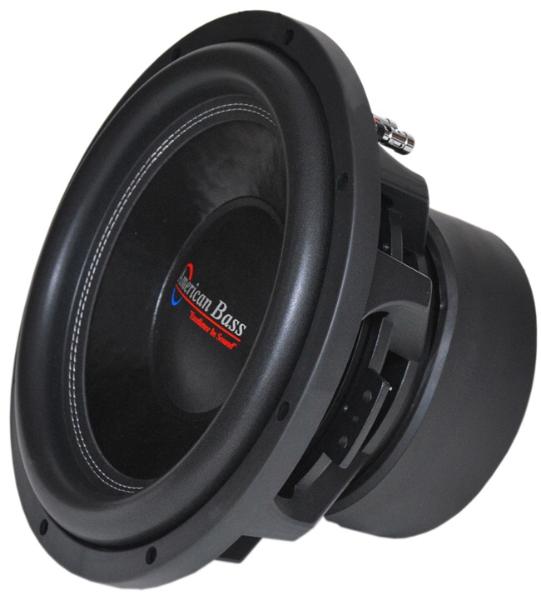

American Bass XFL 1244
American Bass XFL 1244
Model

American Bass XFL 1244

Rating
DIAM
12"
FS(Hz)
33.6
VAS(l)
31.9
QTS
0.44
PWR(W)
2000
SPL(dB)
85.7
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33.6
Vas(l)
31.9
Qts
0.437
Qms
3.611
Qes
0.5
Bl(Tm)
13.9
Mms(gr)
269
Cms(mm/N)
0.083
Rms(kg/s)
15.727
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
51070
Vd(l)
0.97
X-max(mm)
19
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
288
Mounting Depth (mm)
193
Magnet Diameter (mm)
196

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
