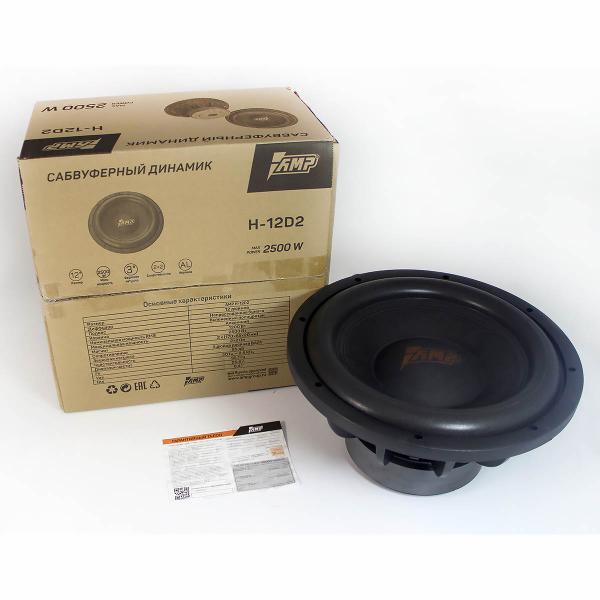

AMP H-12D2
AMP H-12D2
Model

AMP H-12D2

Rating
DIAM
12"
FS(Hz)
35.1
VAS(l)
25.6
QTS
0.41
PWR(W)
2500
SPL(dB)
95
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
35.1
Vas(l)
25.6
Qts
0.41
Qms
0
Qes
0
Bl(Tm)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Mms(gr)
0
Vd(l)
0
Sd(sq.mm)
0
X-max(mm)
0
X-mech(mm)
0
Re(Ohm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2500
RMS Power(W.)
1200
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
2
Sensitivity(dB) 1-W
95
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
