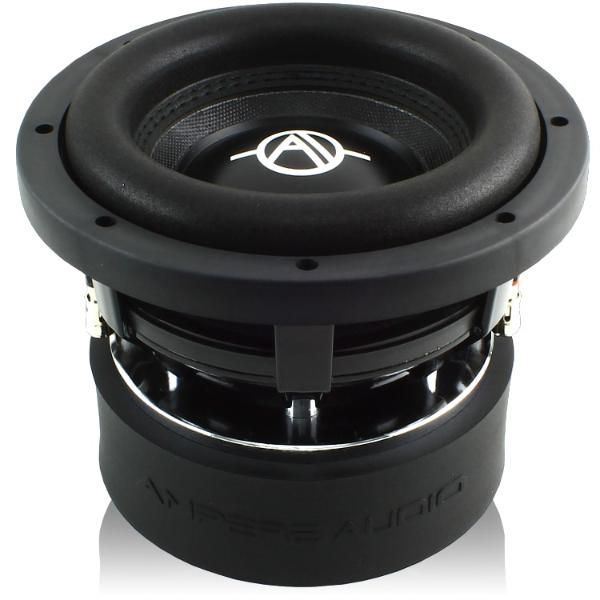

Ampere Audio AA-2.0 RVE 8 D2
Ampere Audio AA-2.0 RVE 8 D2
Model

Ampere Audio AA-2.0 RVE 8 D2

Rating
DIAM
8"
FS(Hz)
38
VAS(l)
8.1
QTS
0.44
PWR(W)
1000
SPL(dB)
81.5
IMP(Ohm)
2x2
avb
PROD

Thiele-Small Parameters

Fs(Hz)
38
Vas(l)
8.1
Qts
0.44
Qms
5
Qes
0.48
Bl(Tm)
15.3
Cms(mm/N)
0.142
Rms(kg/s)
5.9
Le(mH)
2.13
Mms(gr)
123
Vd(l)
0.291
Sd(sq.mm)
20055
X-max(mm)
15
X-mech(mm)
0
Re(Ohm)
3.8

General Parameters

Diameter (inch)
8
Max Power(W.)
1000
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.09
Sensitivity(dB) 1-W
81.5
Sensitivity(dB) 2.8-V
84.7

Mounting Information

Speaker Displacement (l)
1.7
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
