Model

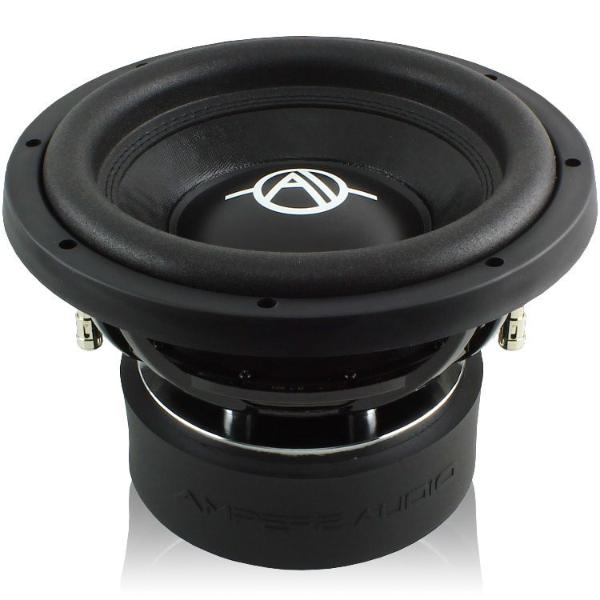

Ampere Audio AA-2.5 RVE 10 D4
Rating
DIAM
10"
FS(Hz)
33.1
VAS(l)
18.4
QTS
0.35
PWR(W)
1600
SPL(dB)
84.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.1
Vas(l)
18.4
Qts
0.35
Qms
3.7
Qes
0.38
Bl(Tm)
27
Mms(gr)
192
Cms(mm/N)
0.12
Rms(kg/s)
10.8
Le(mH)
4.3
Re(Ohm)
6.9
Sd(sq.mm)
32881
Vd(l)
0.625
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
84.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
