Model

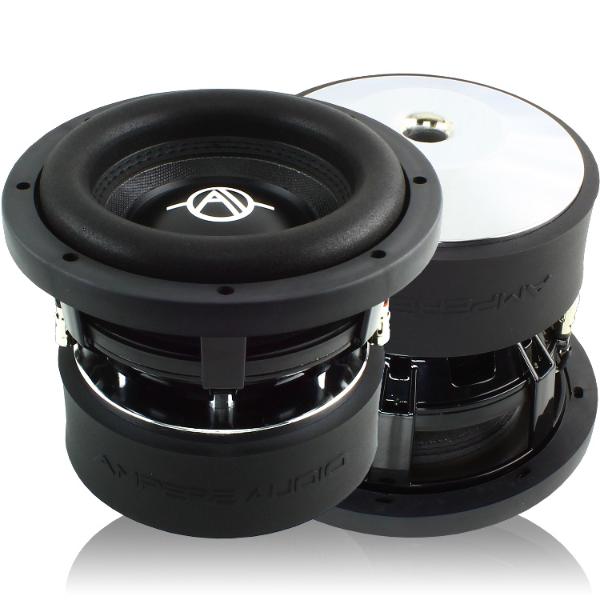

Ampere Audio AA-2.5 RVE 8 D2
Rating
DIAM
8"
FS(Hz)
39
VAS(l)
6
QTS
0.33
PWR(W)
1600
SPL(dB)
81.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
6
Qts
0.33
Qms
3.9
Qes
0.36
Bl(Tm)
20.8
Mms(gr)
158
Cms(mm/N)
0.11
Rms(kg/s)
9.91
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
19611
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.1
Sensitivity(dB) 1-W
81.8
Sensitivity(dB) 2.8-V
84.8
Mounting Information
Speaker Displacement (l)
2.83
Total Diameter (mm)
221
Cutout Diameter (mm)
185
Mounting Depth (mm)
173
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
