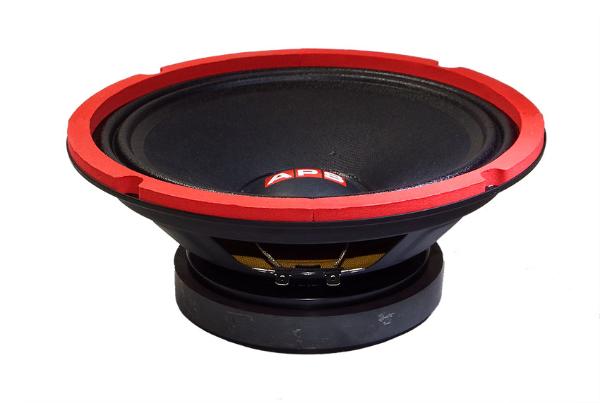

APS Audio TITAN8V3
APS Audio TITAN8V3
Model

APS Audio TITAN8V3

Rating
DIAM
8"
FS(Hz)
94.6
VAS(l)
37
QTS
0.5
PWR(W)
400
SPL(dB)
99
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
94.6
Vas(l)
37
Qts
0.501
Qms
2.929
Qes
0.604
Bl(Tm)
6.2
Cms(mm/N)
0.264
Rms(kg/s)
2.176
Le(mH)
0
Mms(gr)
11
Vd(l)
0.151
Sd(sq.mm)
31431
X-max(mm)
5
X-mech(mm)
0
Re(Ohm)
3.6

General Parameters

Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
5
Sensitivity(dB) 1-W
99
Sensitivity(dB) 2.8-V
102.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
210
Cutout Diameter (mm)
185
Mounting Depth (mm)
80
Magnet Diameter (mm)
120

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
