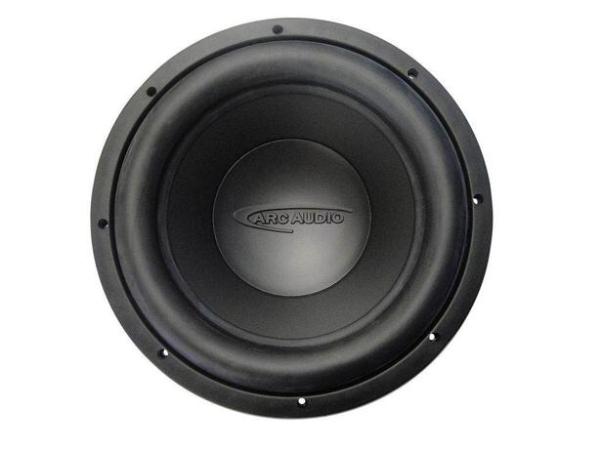

Arc Audio BLACK 12D4
Arc Audio BLACK 12D4
Model

Arc Audio BLACK 12D4

Rating
DIAM
12"
FS(Hz)
21.3
VAS(l)
80.4
QTS
0.34
PWR(W)
1000
SPL(dB)
0
IMP(Ohm)
4x2
avb
UNK

Thiele-Small Parameters

Fs(Hz)
21.3
Vas(l)
80.4
Qts
0.335
Qms
0
Qes
0
Bl(Tm)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Mms(gr)
0
Vd(l)
0
Sd(sq.mm)
0
X-max(mm)
0
X-mech(mm)
0
Re(Ohm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
0
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
2.6
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
