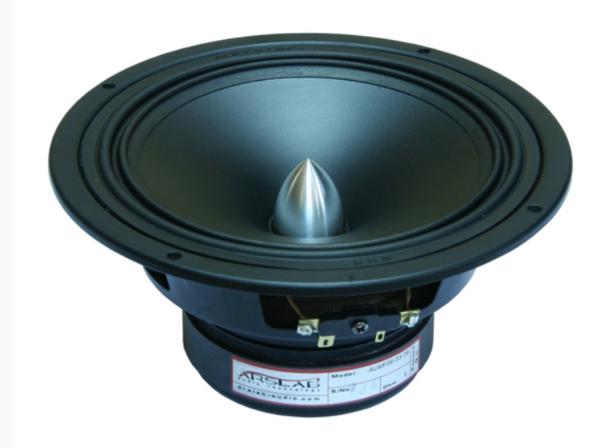

Arslab ALWF060308 (W6-1790A)
Arslab ALWF060308 (W6-1790A)
Model

Arslab ALWF060308 (W6-1790A)

Rating
DIAM
6"
FS(Hz)
58
VAS(l)
19.3
QTS
0.6
PWR(W)
0
SPL(dB)
89.3
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
58
Vas(l)
19.3
Qts
0.596
Qms
5.301
Qes
0.672
Bl(Tm)
5.8
Cms(mm/N)
0
Rms(kg/s)
0.694
Le(mH)
0
Mms(gr)
10
Vd(l)
0
Sd(sq.mm)
13523
X-max(mm)
0
X-mech(mm)
0
Re(Ohm)
6.1

General Parameters

Diameter (inch)
6
Max Power(W.)
0
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.54
Sensitivity(dB) 1-W
89.3
Sensitivity(dB) 2.8-V
89.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
175
Cutout Diameter (mm)
0
Mounting Depth (mm)
80
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
