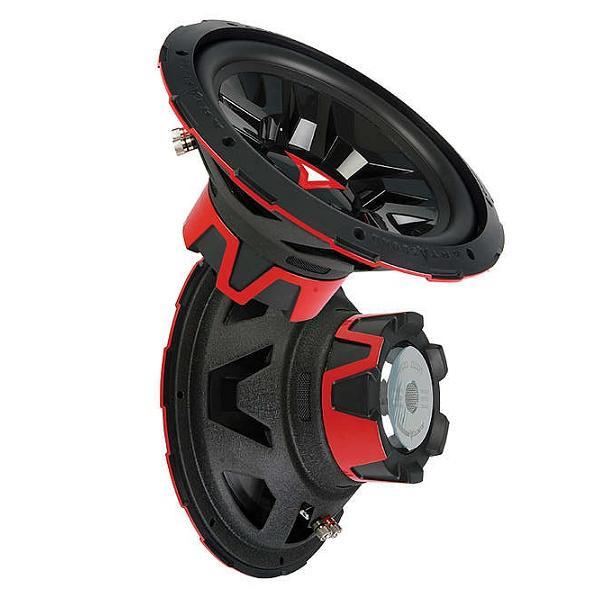

Art Sound HIT-12
Art Sound HIT-12
Model

Art Sound HIT-12

Rating
DIAM
12"
FS(Hz)
35
VAS(l)
60
QTS
0.47
PWR(W)
600
SPL(dB)
88.6
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
35
Vas(l)
60
Qts
0.47
Qms
3.5
Qes
0.543
Bl(Tm)
15.1
Cms(mm/N)
0.154
Rms(kg/s)
8.451
Le(mH)
0
Mms(gr)
135
Vd(l)
0
Sd(sq.mm)
52413
X-max(mm)
0
X-mech(mm)
0
Re(Ohm)
4.2

General Parameters

Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
