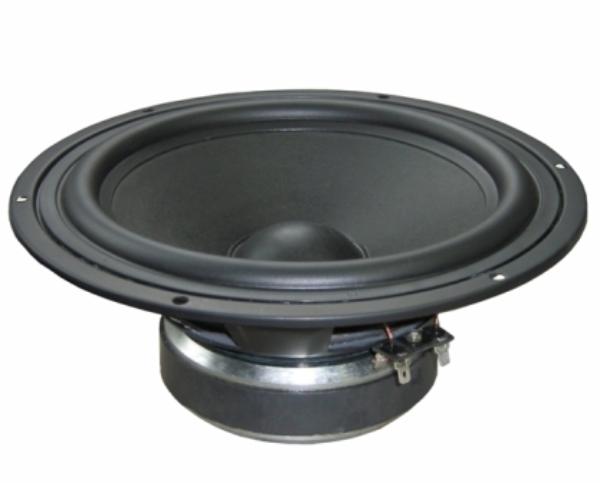

ASAlab B2006.8
ASAlab B2006.8
Model

ASAlab B2006.8

Rating
DIAM
8"
FS(Hz)
38
VAS(l)
42.5
QTS
0.38
PWR(W)
250
SPL(dB)
88.8
IMP(Ohm)
8x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
38
Vas(l)
42.5
Qts
0.38
Qms
1.95
Qes
0.47
Bl(Tm)
9.4
Cms(mm/N)
0.65
Rms(kg/s)
3.355
Le(mH)
0.78
Mms(gr)
27
Vd(l)
0.215
Sd(sq.mm)
21471
X-max(mm)
10
X-mech(mm)
0
Re(Ohm)
6.2

General Parameters

Diameter (inch)
8
Max Power(W.)
250
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.48
Sensitivity(dB) 1-W
88.8
Sensitivity(dB) 2.8-V
89.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
218
Cutout Diameter (mm)
182
Mounting Depth (mm)
90
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
