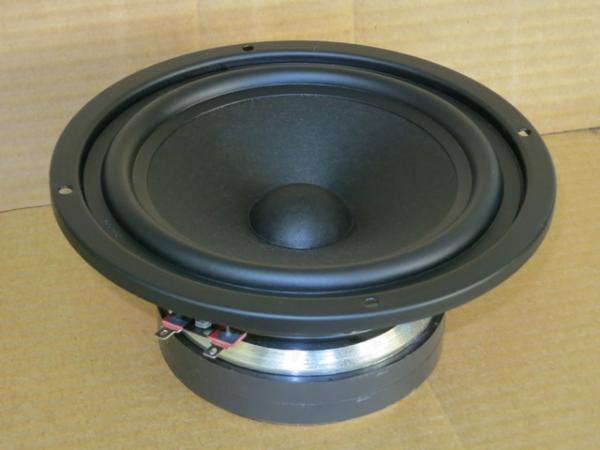

ASAlab MB1602.4
ASAlab MB1602.4
Model

ASAlab MB1602.4

Rating
DIAM
6"
FS(Hz)
48
VAS(l)
16.7
QTS
0.43
PWR(W)
150
SPL(dB)
87.3
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
48
Vas(l)
16.7
Qts
0.43
Qms
2.5
Qes
0.53
Bl(Tm)
6
Cms(mm/N)
0.63
Rms(kg/s)
2.11
Le(mH)
0.13
Mms(gr)
17
Vd(l)
0.137
Sd(sq.mm)
13680
X-max(mm)
10
X-mech(mm)
0
Re(Ohm)
3.6

General Parameters

Diameter (inch)
6
Max Power(W.)
150
RMS Power(W.)
75
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.34
Sensitivity(dB) 1-W
87.3
Sensitivity(dB) 2.8-V
90.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
182
Cutout Diameter (mm)
147
Mounting Depth (mm)
87
Magnet Diameter (mm)
110

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
