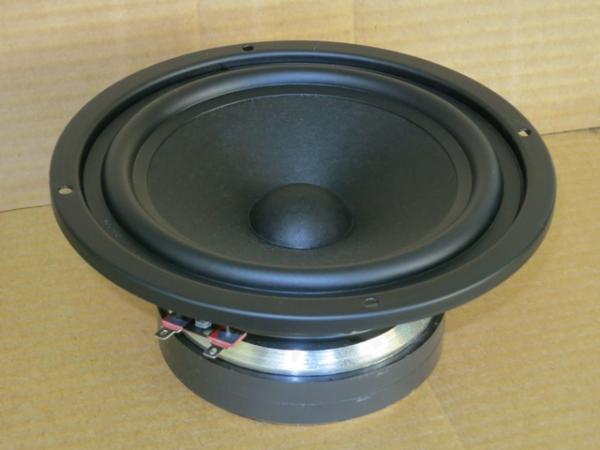

ASAlab MB1602.8
ASAlab MB1602.8
Model

ASAlab MB1602.8

Rating
DIAM
6"
FS(Hz)
45
VAS(l)
26
QTS
0.42
PWR(W)
75
SPL(dB)
88.7
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
45
Vas(l)
26
Qts
0.421
Qms
3
Qes
0.488
Bl(Tm)
7
Cms(mm/N)
0.97
Rms(kg/s)
1.25
Le(mH)
0.75
Mms(gr)
14
Vd(l)
0.082
Sd(sq.mm)
13600
X-max(mm)
6
X-mech(mm)
0
Re(Ohm)
6.3

General Parameters

Diameter (inch)
6
Max Power(W.)
75
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.47
Sensitivity(dB) 1-W
88.7
Sensitivity(dB) 2.8-V
89.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
182
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
110

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
