Model

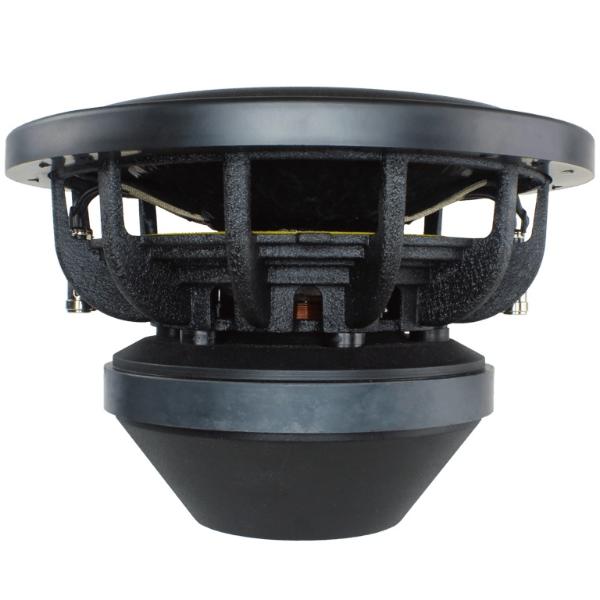

Ascendant Audio HAVOC 10 D1
Rating
DIAM
10"
FS(Hz)
34.9
VAS(l)
11.9
QTS
0.35
PWR(W)
3000
SPL(dB)
83.2
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.9
Vas(l)
11.9
Qts
0.35
Qms
6.87
Qes
0.369
Bl(Tm)
13.8
Mms(gr)
233
Cms(mm/N)
0.089
Rms(kg/s)
7.437
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
30704
Vd(l)
0.921
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
83.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.4
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
153
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
