Model

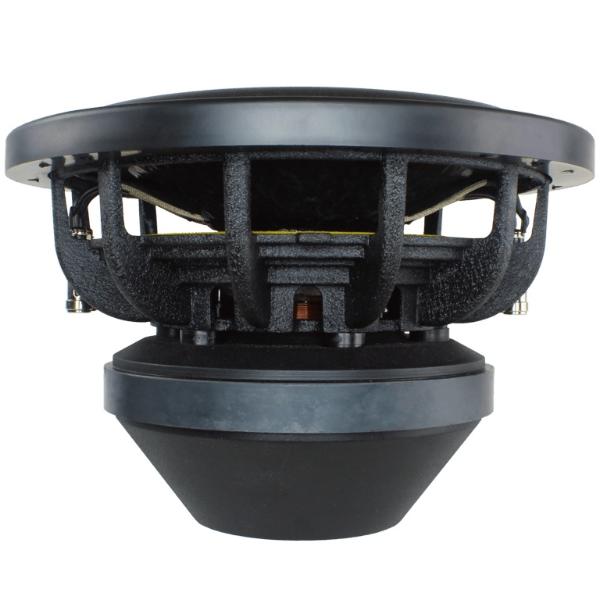

Ascendant Audio HAVOC 12 D1
Rating
DIAM
12"
FS(Hz)
34.4
VAS(l)
28.9
QTS
0.37
PWR(W)
3000
SPL(dB)
86.6
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.4
Vas(l)
28.9
Qts
0.37
Qms
6.99
Qes
0.391
Bl(Tm)
13.8
Mms(gr)
252
Cms(mm/N)
0.085
Rms(kg/s)
7.792
Le(mH)
0
Re(Ohm)
1.4
Sd(sq.mm)
48962
Vd(l)
1.469
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
4.53
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
178
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
