Model

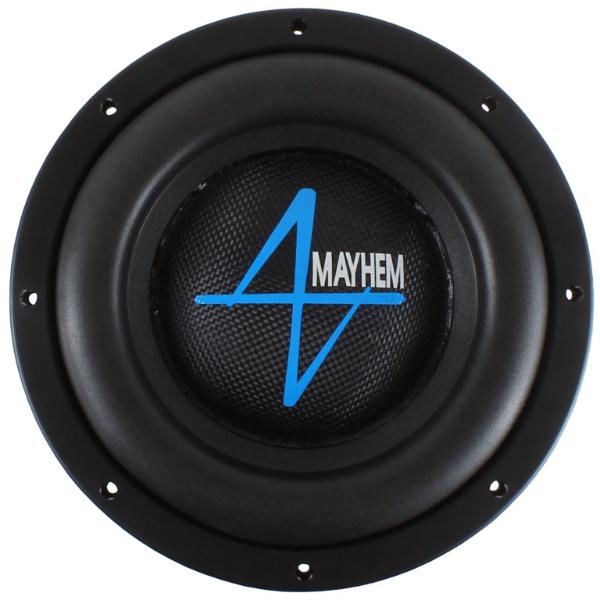

Ascendant Audio MAYHEM 12 D2
Rating
DIAM
12"
FS(Hz)
39.7
VAS(l)
21.5
QTS
0.27
PWR(W)
5000
SPL(dB)
88.6
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.7
Vas(l)
21.5
Qts
0.27
Qms
5.68
Qes
0.283
Bl(Tm)
26.2
Mms(gr)
253
Cms(mm/N)
0.064
Rms(kg/s)
11.111
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
48669
Vd(l)
1.46
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
5.94
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
235
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
