Model

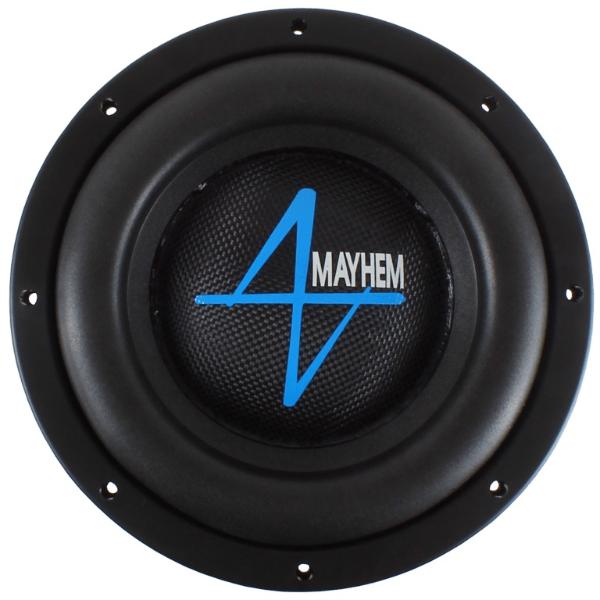

Ascendant Audio MAYHEM 15 D2
Rating
DIAM
15"
FS(Hz)
39.7
VAS(l)
51.3
QTS
0.32
PWR(W)
5000
SPL(dB)
91.6
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
39.7
Vas(l)
51.3
Qts
0.32
Qms
6.81
Qes
0.336
Bl(Tm)
26.2
Mms(gr)
319
Cms(mm/N)
0.05
Rms(kg/s)
11.685
Le(mH)
0
Re(Ohm)
2.9
Sd(sq.mm)
81000
Vd(l)
2.43
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
5.94
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
235
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
