Model

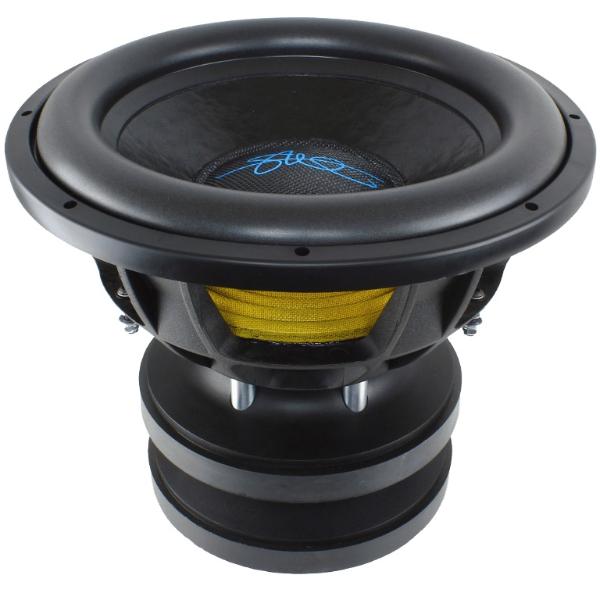

Ascendant Audio SMD V2 15 D2
Rating
DIAM
15"
FS(Hz)
34.1
VAS(l)
31.5
QTS
0.27
PWR(W)
10000
SPL(dB)
88.3
IMP(Ohm)
2x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.1
Vas(l)
31.5
Qts
0.27
Qms
8.43
Qes
0.279
Bl(Tm)
28.1
Mms(gr)
481
Cms(mm/N)
0.045
Rms(kg/s)
12.225
Le(mH)
0
Re(Ohm)
2.1
Sd(sq.mm)
81000
Vd(l)
2.673
X-max(mm)
33
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
10000
RMS Power(W.)
5000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
6.8
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
298
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
