Model

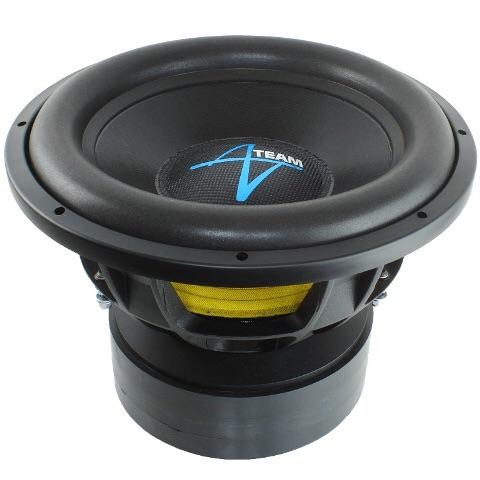

Ascendant Audio TEAM 15 D1
Rating
DIAM
15"
FS(Hz)
31.6
VAS(l)
47.7
QTS
0.32
PWR(W)
8000
SPL(dB)
88.3
IMP(Ohm)
1x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.6
Vas(l)
47.7
Qts
0.32
Qms
5.92
Qes
0.338
Bl(Tm)
26
Mms(gr)
645
Cms(mm/N)
0.039
Rms(kg/s)
21.632
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
81000
Vd(l)
2.835
X-max(mm)
35
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
8000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
5.94
Total Diameter (mm)
0
Cutout Diameter (mm)
359
Mounting Depth (mm)
362
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
