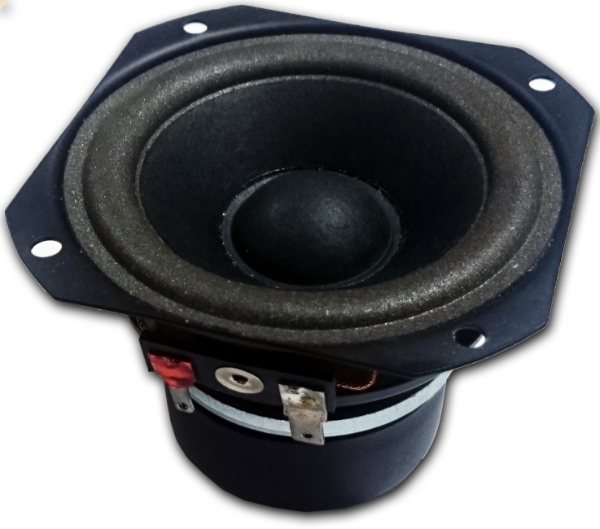

Audax AT080M0
Audax AT080M0
Model

Audax AT080M0

Rating
DIAM
3"
FS(Hz)
80.6
VAS(l)
1.8
QTS
0.68
PWR(W)
20
SPL(dB)
81.7
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
80.6
Vas(l)
1.8
Qts
0.68
Qms
2.23
Qes
0.97
Bl(Tm)
2.9
Cms(mm/N)
1.5
Rms(kg/s)
0.579
Le(mH)
0
Mms(gr)
3
Vd(l)
0.004
Sd(sq.mm)
2900
X-max(mm)
2
X-mech(mm)
0
Re(Ohm)
6.1

General Parameters

Diameter (inch)
3
Max Power(W.)
20
RMS Power(W.)
10
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
90
Mounting Depth (mm)
60
Magnet Diameter (mm)
70

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6
