Model

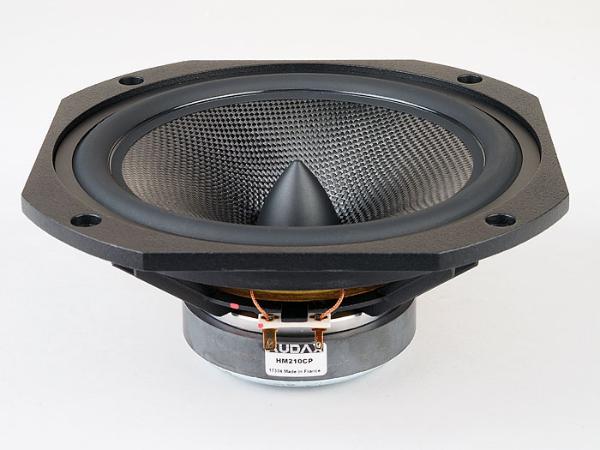

Audax HM210CP
Rating
DIAM
8"
FS(Hz)
33
VAS(l)
83
QTS
0.28
PWR(W)
0
SPL(dB)
91.8
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
83
Qts
0.28
Qms
4.2
Qes
0.3
Bl(Tm)
7.2
Mms(gr)
18
Cms(mm/N)
1.292
Rms(kg/s)
0.89
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
21283
Vd(l)
0.096
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
0
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.96
Sensitivity(dB) 1-W
91.8
Sensitivity(dB) 2.8-V
92.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
235
Cutout Diameter (mm)
187
Mounting Depth (mm)
89
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
BP6P, Vented
