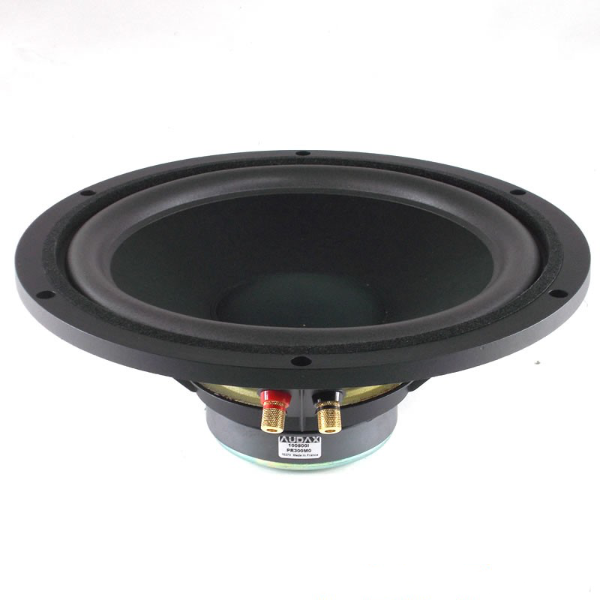

Audax PR300M0
Audax PR300M0
Model

Audax PR300M0

Rating
DIAM
12"
FS(Hz)
17
VAS(l)
1012
QTS
0.26
PWR(W)
100
SPL(dB)
94.3
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
17
Vas(l)
1012
Qts
0.26
Qms
3.52
Qes
0.28
Bl(Tm)
8.4
Mms(gr)
33
Cms(mm/N)
2.7
Rms(kg/s)
1.001
Le(mH)
0
Re(Ohm)
5.6
Sd(sq.mm)
52100
Vd(l)
0.229
X-max(mm)
4
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
100
RMS Power(W.)
50
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
94.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
280
Mounting Depth (mm)
120
Magnet Diameter (mm)
124

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
