Model

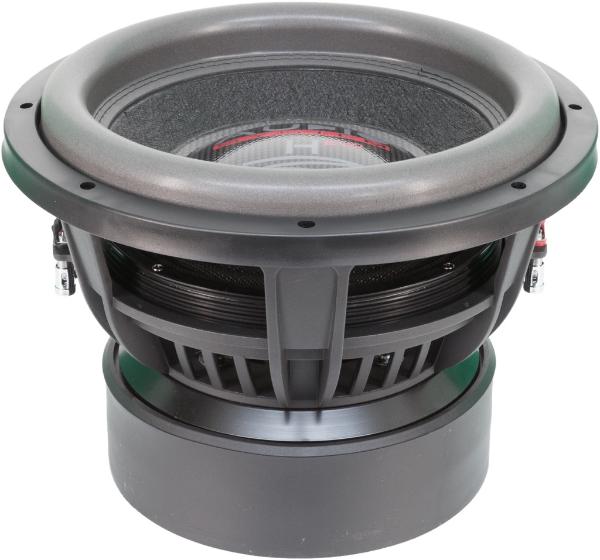

Audio System H15 EVO
Rating
DIAM
15"
FS(Hz)
34
VAS(l)
51.8
QTS
0.62
PWR(W)
5000
SPL(dB)
86.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34
Vas(l)
51.8
Qts
0.619
Qms
5.4
Qes
0.699
Bl(Tm)
20.8
Mms(gr)
298
Cms(mm/N)
0.074
Rms(kg/s)
11.77
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
83500
Vd(l)
1.837
X-max(mm)
22
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
5000
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
396
Cutout Diameter (mm)
358
Mounting Depth (mm)
239
Magnet Diameter (mm)
226
Optimum Enclosures
Enclosures
Closed, BP4
