Model

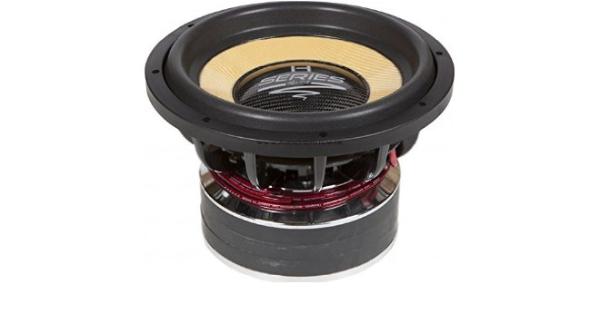

Audio System H15 UNLIMITED
Rating
DIAM
15"
FS(Hz)
32
VAS(l)
60.2
QTS
0.46
PWR(W)
3500
SPL(dB)
87.7
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32
Vas(l)
60.2
Qts
0.46
Qms
4.45
Qes
0.513
Bl(Tm)
15.3
Mms(gr)
299
Cms(mm/N)
0.083
Rms(kg/s)
13.519
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
86553
Vd(l)
2.597
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3500
RMS Power(W.)
2400
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.37
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
93.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
395
Cutout Diameter (mm)
354
Mounting Depth (mm)
237
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
